Original file ‎(2,048 × 1,536 pixels, file size: 420 KB, MIME type: image/jpeg)

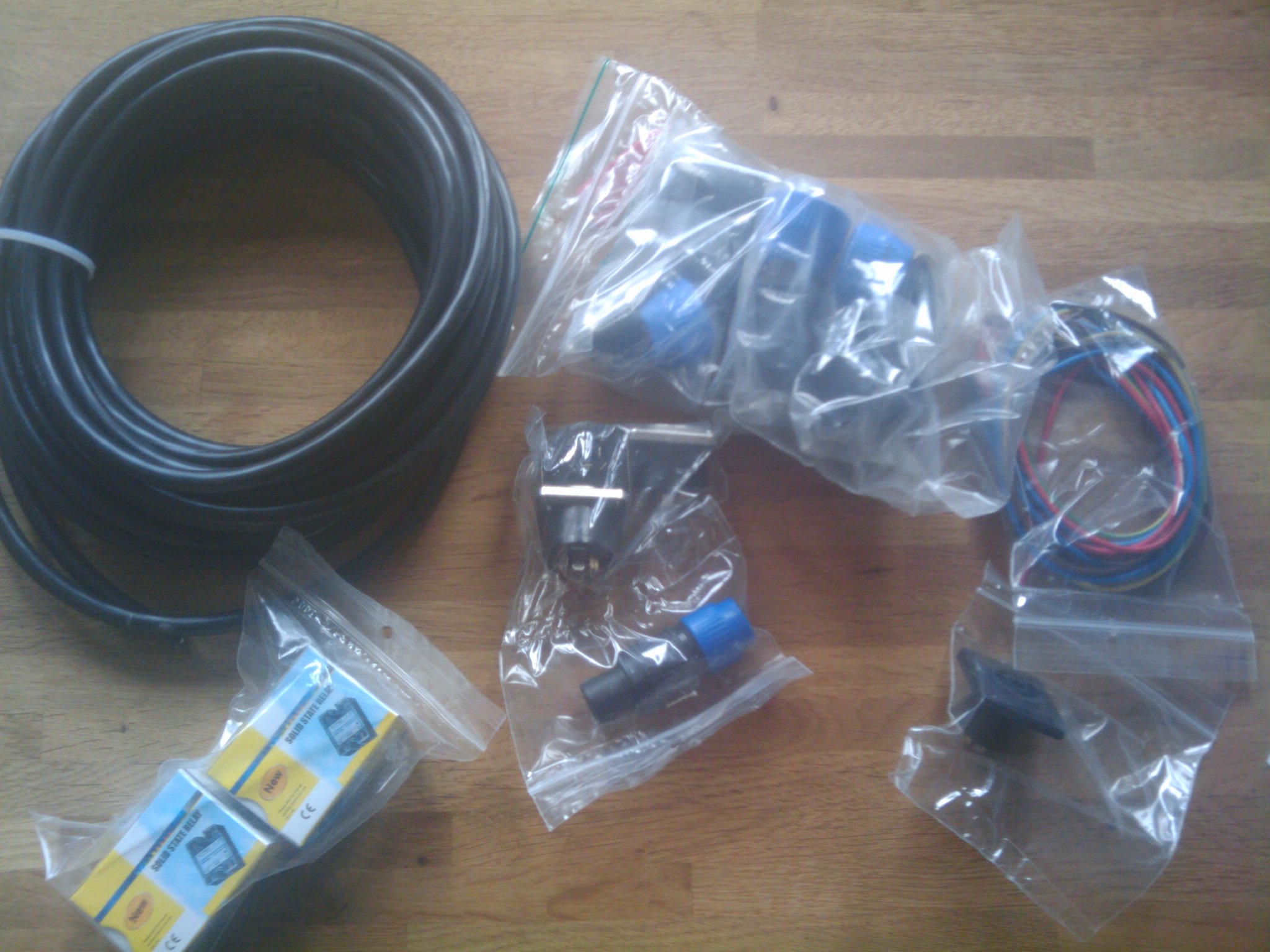

Overzichtje van de geleverde electronica voor de cnc2.

  • 2x solid state 230v relais
  • 7 aderig power kabel voor aansturing van de steppers
  • 1mm draad voor interne 230v distributie, random kleurtjes
  • 3x 8 polige speakon stekkers, 1 per as.
  • 1x 4 polige speakong stekker, 230v aansluiting
