File:HypnoDisc Controller voorkant.jpg

From Frack - Hackerspace Friesland
Jump to navigationJump to search
Original file ‎(1,800 × 1,350 pixels, file size: 579 KB, MIME type: image/jpeg)

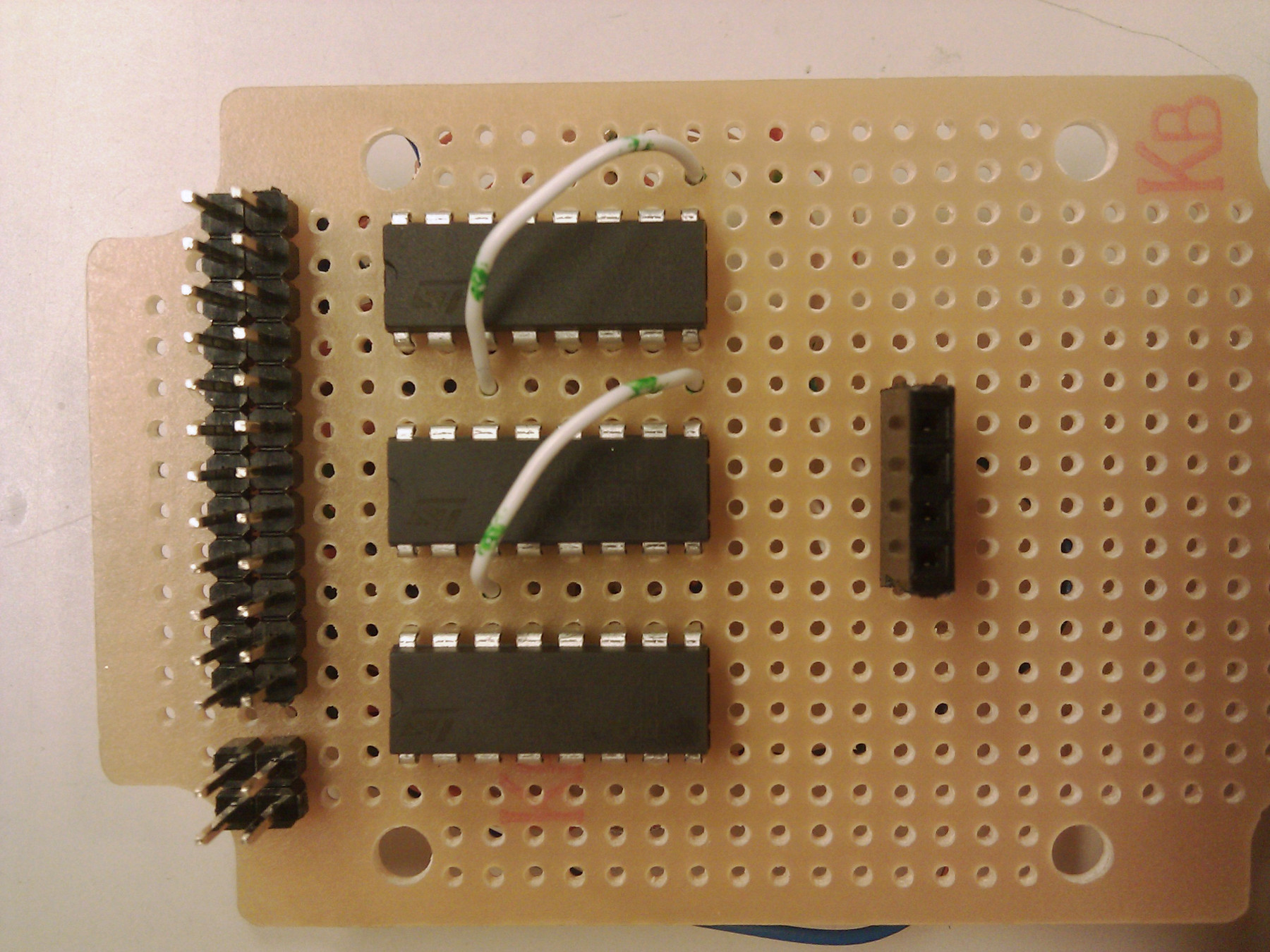

Voorkant van het controller printje bij HypnoDisc. Te zien zijn drie in serie geschakelde 74HC595 schuifregisters. De overflow pin is hierbij aangesloten op de data-ingang van de volgende chip.
