File:WeatherDuino main schema.png
From Frack - Hackerspace Friesland
Jump to navigationJump to search
Size of this preview: 780 × 600 pixels. Other resolutions: 312 × 240 pixels | 3,612 × 2,778 pixels.
Original file (3,612 × 2,778 pixels, file size: 320 KB, MIME type: image/png)

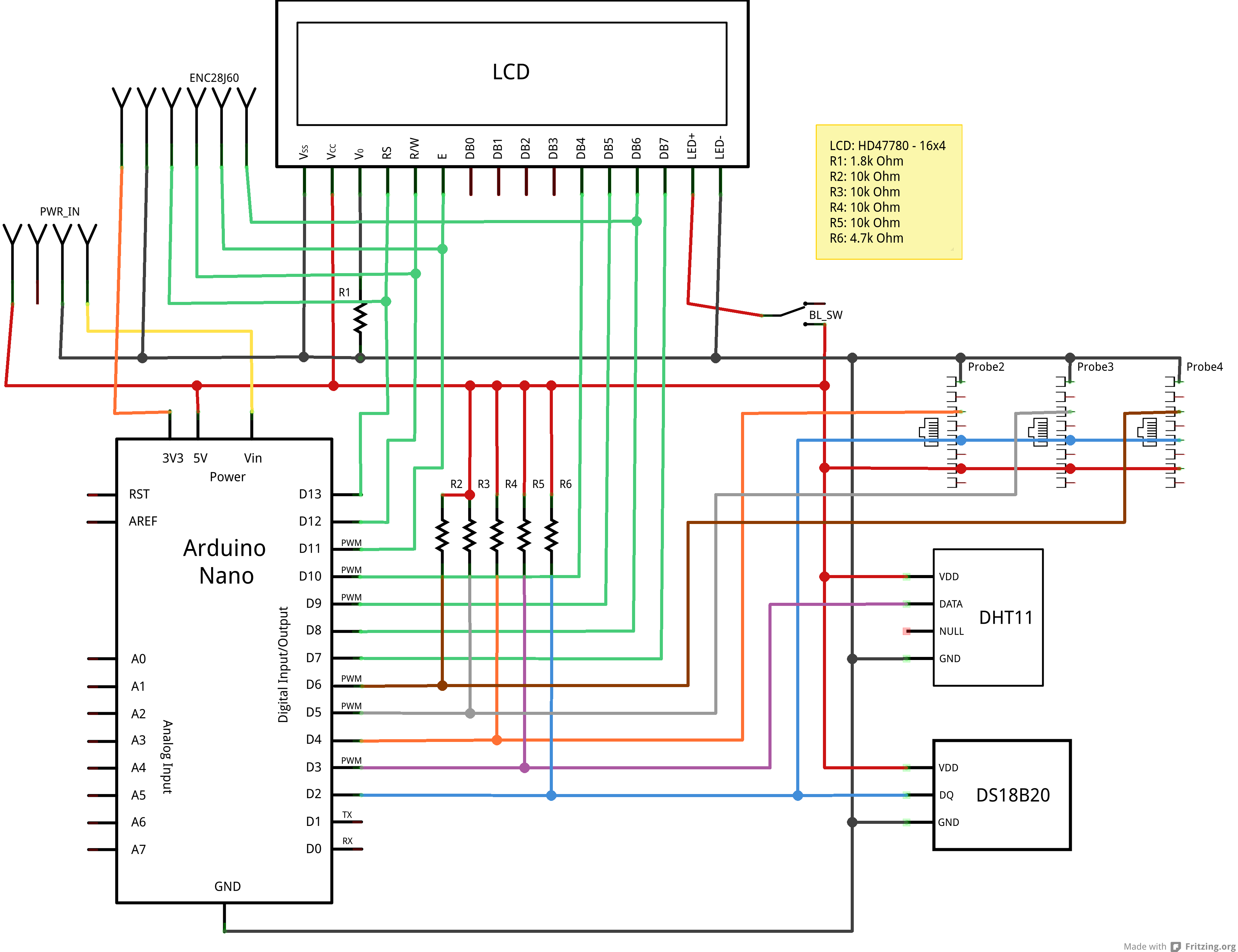

Schematic layout of the Main Module which contains the Arduino, LCD, Internal probes and RJ45 socket.
File history
Click on a date/time to view the file as it appeared at that time.
| Date/Time | Thumbnail | Dimensions | User | Comment | |
|---|---|---|---|---|---|
| current | 20:58, 19 September 2013 | | 3,612 × 2,778 (320 KB) | Fludizz (talk | contribs) | Modified designs to allow for 2 additional remote probes and optionally use a ENC28J60 instead of the LCD. Yes, INSTEAD! They cannot be used at the same time! |

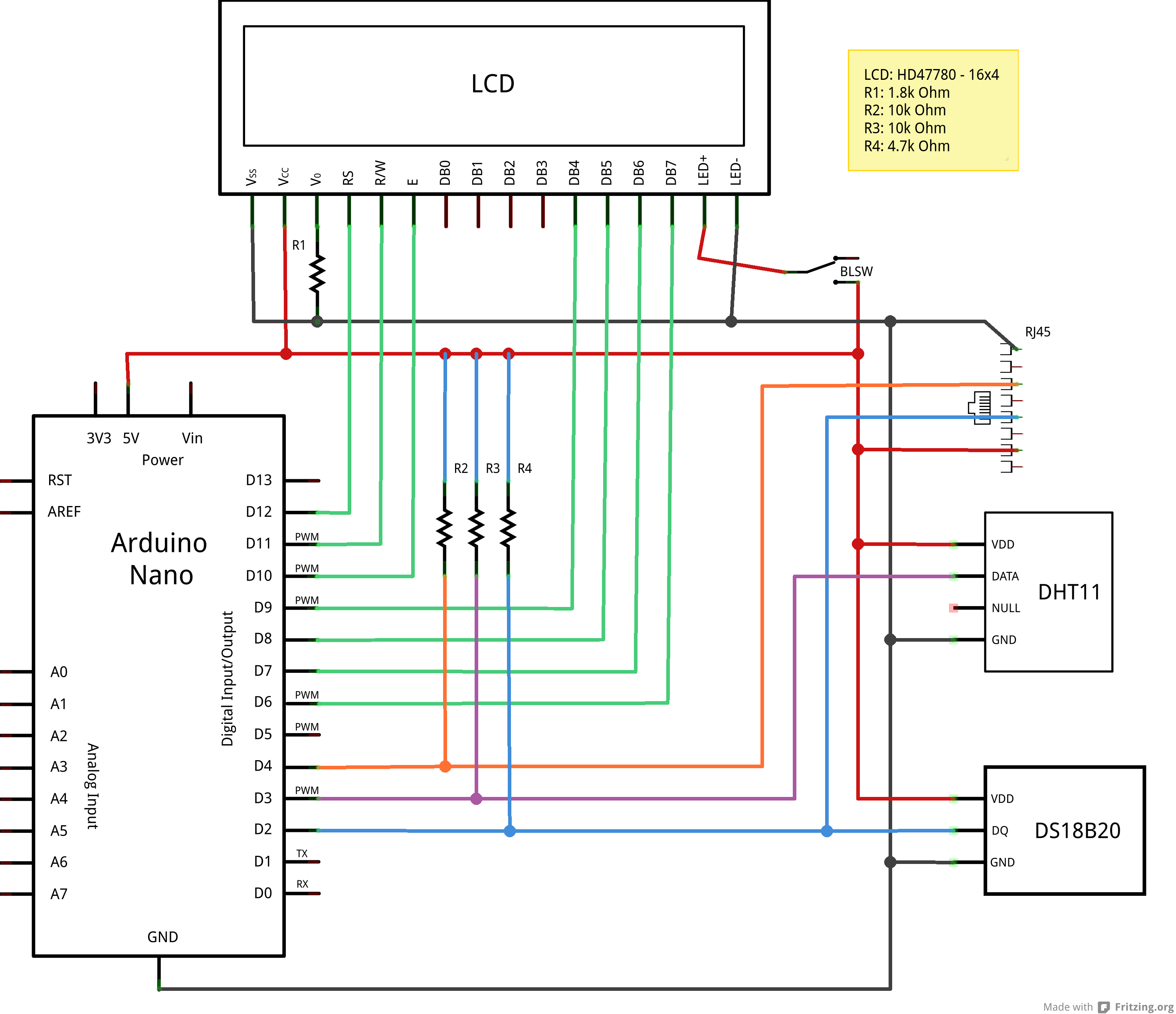

| 01:00, 3 July 2013 |  | 2,946 × 2,541 (244 KB) | Fludizz (talk | contribs) | Revised version with correct RJ45 module! | |

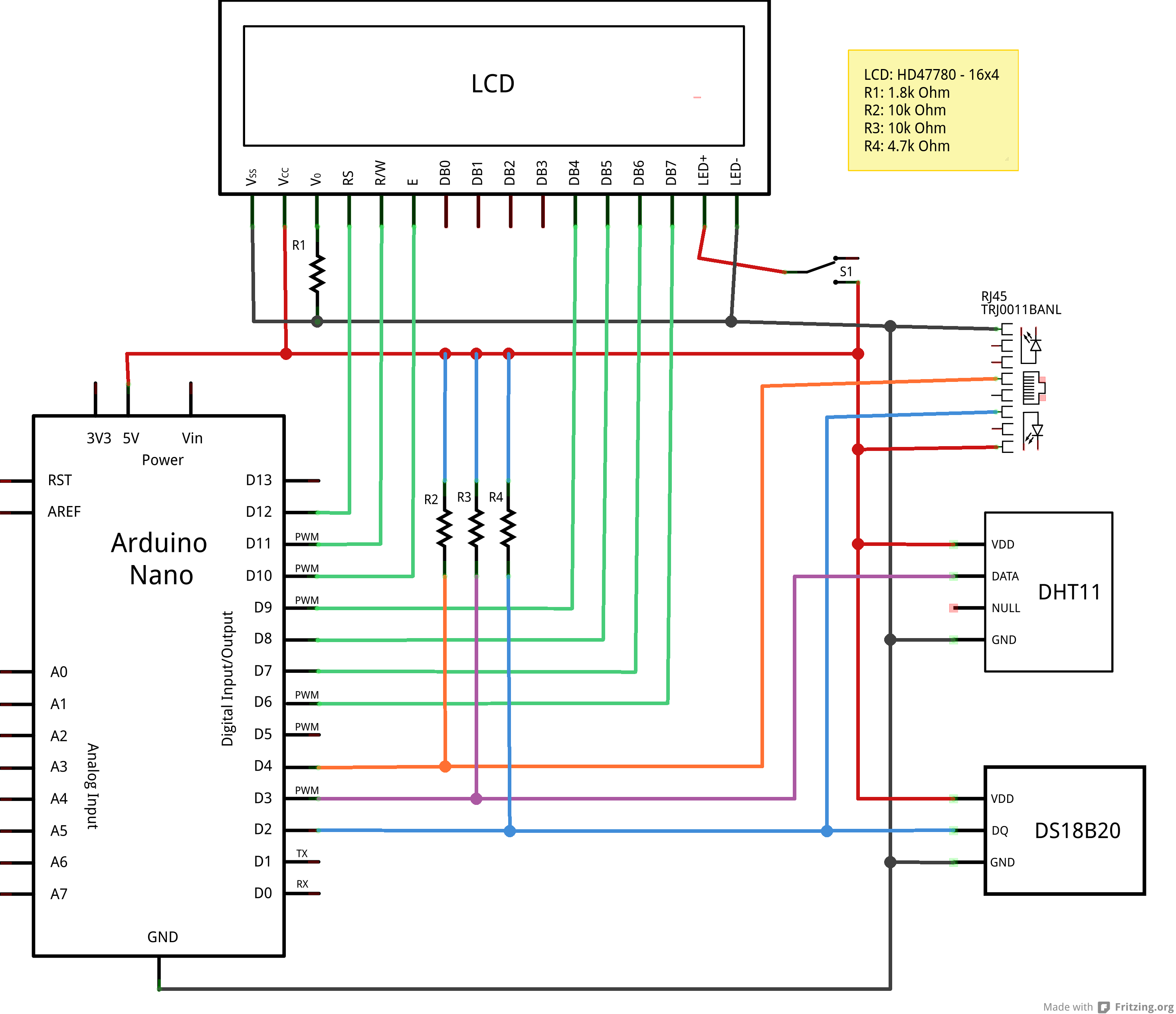

| 00:42, 28 June 2013 |  | 2,946 × 2,541 (251 KB) | Fludizz (talk | contribs) | Schematic layout of the Main Module which contains the Arduino, LCD, Internal probes and RJ45 socket. |
- You cannot overwrite this file.
File usage
The following page uses this file:
